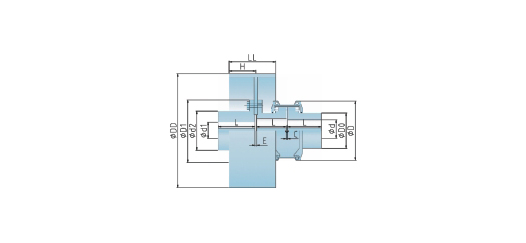

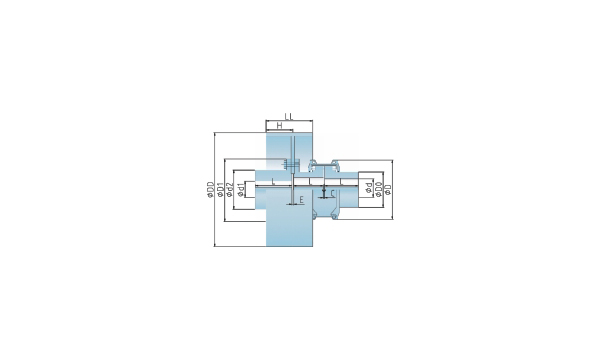

T61系列制動輪聯軸器 |
制動輪 |
||||||||||||||||
|
型號 |
公稱轉矩 Tn N.m |
許用轉速 （n） rpm |
******軸孔 d mm |
軸孔長度 L mm |
中間長度 L1 mm |
D mm |
D2 mm |
D0 mm |
間隙 C mm |
質量無孔 kg |
充油量 kg |
制動輪 DD*LL |
適用型號 |
許用轉速 （n） rpm |
間隙 E mm |
H mm |
質量無孔 kg |
|
6060T |
684 |
80 |
56 |
75 |
75 |
150 |
105 |
76.2 |
3 |
14.4 |
0.086 |
200*85 |
6050T-6070T |
3800 |
10 |
50 |
9.8 |
|
6070T |
994 |
85 |
65 |
80 |
80 |
160 |
110 |
87.3 |
3 |
18.3 |
0.113 |
250*106 |
6070T-6080T |
3000 |
15 |
70 |
24.4 |
|
6080T |
2050 |
95 |
80 |
95 |
95 |
215 |
122 |
120 |
3 |
30.4 |
0.172 |
315*135 |
6080T-6100T |
2400 |
15 |
90 |
30.2 |
|
6090T |
3730 |
110 |
96 |
105 |
105 |
250 |
142 |
140 |
3 |
44.3 |
0.254 |
400*170 |
6090T-6110T |
1900 |
20 |
110 |
61.5 |
|
6100T |
6280 |
130 |
110 |
125 |
125 |
260 |
170 |
155 |
5 |
75.6 |
0.426 |
450*206 |
6100T-6120T |
1700 |
20 |
110 |
80.8 |
|
6110T |
9320 |
150 |
120 |
135 |
135 |
300 |
198 |
175 |
5 |
112.6 |
0.508 |
500*210 |
6100T-6120T |
1500 |
20 |
120 |
95.9 |
|
6120T |
13700 |
170 |
140 |
155 |
155 |
340 |
225 |
215 |
6 |
142.5 |
0.735 |
560*230 |
6110T-6130T |
1350 |
20 |
130 |
119.3 |
|
6130T |
19900 |
190 |
170 |
175 |
175 |
376 |
238 |
255 |
6 |
192.3 |
0.908 |
630*265 |
6120T-6140T |
1200 |
20 |
145 |
172.4 |
|
6140T |
28600 |
210 |
200 |
190 |
190 |
453 |
268 |
270 |
6 |
262.3 |
1.135 |
710*300 |
6130T-6150T |
1050 |
25 |
120 |
235.6 |
|
6150T |
39800 |
240 |
215 |
200 |
200 |
494 |
298 |
305 |
6 |
335.6 |
1.952 |
800*335 |
6140T-6150T |
950 |
25 |
150 |
328.2 |
注：具體技術參數來電咨詢0577-65205101。
