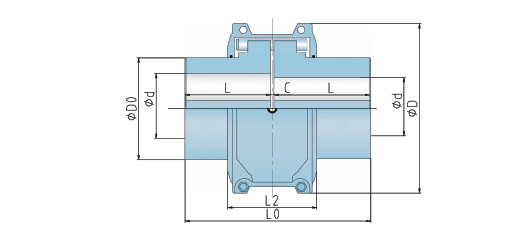

型號

公稱轉(zhuǎn)矩

Tn

N.m

許用轉(zhuǎn)速

（n）

rpm

******軸孔

d

mm

軸孔長度

L

mm

總長

L0

mm

L2

mm

D

mm

D0

mm

間隙

C

mm

質(zhì)量無孔

kg

轉(zhuǎn)動慣量

I

Kg.m2

充油量

kg

1020T

52

4500

28

47.6

98.2

66.7

97.0

-

3

1.91

0.0014

0.027

1030T

149

4500

35

47.6

98.2

68.3

105.7

-

3

2.59

0.0022

0.041

1040T

249

4500

42

50.8

104.6

69.9

114.3

-

3

3.63

0.0033

0.054

1050T

435

4500

50

60.3

123.6

80.9

135.1

-

3

5.44

0.0073

0.068

1060T

684

4350

56

63.5

130.0

93.5

157.8

-

3

7.26

0.0119

0.086

1070T

994

4125

65

76.2

155.4

98.8

158.8

-

3

10.4

0.0185

0.113

1080T

2050

3600

80

88.9

180.8

115.6

190.5

-

3

17.7

0.0451

0.172

1090T

3730

3600

95

98.4

199.8

122.2

211.1

-

3

25.4

0.0787

0.254

1100T

6280

2440

110

120.6

246.2

155.4

251.0

-

5

42.2

0.1780

0.426

1110T

9320

2250

120

127.0

259.0

161.5

269.7

-

5

54.4

0.2700

0.508

1120T

13700

2025

140

149.2

304.4

191.5

307.8

-

6

81.2

0.5140

0.735

1130T

19900

1800

170

161.9

329.8

195.1

345.9

-

6

121

0.9590

0.908

1140T

28600

1650

200

184.2

374.4

201.2

384.0

-

6

178

1.8500

1.135

1150T

39800

1500

215

182.9

371.8

271.5

453.1

391.2

6

227

3.4900

1.952

1160T

55900

1350

240

198.1

402.2

278.4

501.9

436.9

6

309

5.8200

2.815

1170T

74600

1225

280

215.9

437.8

307.3

566.9

487.2

6

448

10.400

3.496

1180T

103000

1100

300

238.8

483.6

321.1

629.9

554.7

6

619

18.300

3.768

1190T

137000

1050

335

259.1

524.2

325.1

675.6

607.8

6

776

26.100

4.400

1200T

186000

900

360

279.4

564.8

355.6

756.9

660.4

6

1057

43.500

5.630

1210T

249000

820

390

301.8

622.6

431.8

844.6

750.8

13

1424

75.500

10.53

1220T

336000

730

420

325.1

663.2

490.2

920.8

822.2

13

1785

113.00

16.07

1230T

435000

680

450

345.4

703.8

546.1

1003.3

904.7

13

2267

175.00

24.06

1240T

559000

630

480

368.3

749.6

647.7

1087.1

-

13

2950

339.00

33.82

1250T

746000

580

510

401.3

815.6

698.5

1181.1

-

13

3833

524.00

50.17

1260T

932000

540

550

431.8

876.6

762.0

1260.9

-

13

4682

711.00

67.24
